DX8516 Mining Cable Load Combustion Testing Machine

Name: DX8516 Mining Cable Load Combustion Testing Machine
Brand: Daxian
Price: 1 USD

Brand Name : Daxian

Model Number : DX8516

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T, D/A

Supply Ability : Five sets per month

Packaging Details : Wooden case

Contact Now

DX8516 Mining Cable Load Combustion Testing Machine

This testing machine is manufactured according to the standard MT 386-1995 "Test methods and determination rules for flame retardancy of flame retardant cables for coal mines", and is used to test the combustion characteristics of MT 818-2009 "Flame retardant cables for coal mines" under overload conditions.

Main parameters:

1. Combustor size: L1100× W900 × D525mm

2. External dimensions of combustion chamber: 1750 ×1100× 500mm

3. Load current: 0-3000A continuously adjustable

4. Adjustable nozzle height, nozzle angle: 90 °

5. Temperature measurement range: K-type thermocouple 0-1200 ℃

6. Temperature control meter display range: 0~999.9

7. Temperature control meter accuracy: 0.5 level

8. Timer range: 0-99.99S/m/H

9. Volume: 0.5m³, with exhaust device

10. Gas: Natural gas or synthetic methane (methane content should be above 95%)

11. Working voltage: AC 380V ± 10% 50HZ

12. Total weight: 250KG

Product Tags:

DX8516 Mining Cable Testing Machine

DX8516 Load Combustion Testing Machine

Mining Cable Load Combustion Testing Machine

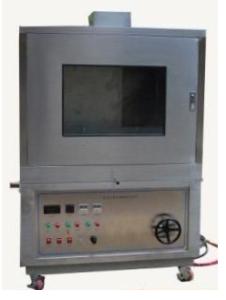

DX8516 Mining Cable Load Combustion Testing Machine Images
