IEC60587 Tracking Index Tester Electrical Insulating Materials Evaluation

Name: IEC60587 Tracking Index Tester Electrical Insulating Materials Evaluation
Brand: Daxian
Price: 1 USD

China IEC60587 Tracking Index Tester Electrical Insulating Materials Evaluation wholesale

Brand Name : Daxian

Model Number : DX8427

Certification : IEC60587-2007, ASTM D2303

Place of Origin : China

MOQ : One set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5 sets per month

Delivery Time : 5-8 work days

Packaging Details : Wooden case

Usage : silicone rubber Corrosion resistance testing machine

Standards : IEC60587-2007, ASTM D2303

Power : AC 220V/50HZ

Drop Height : 30mm ~ 40mm Adjustable

Warranty : 12 Months

Test Voltage : 100~6000V Adjustable

Contact Now

IEC60587 Evaluation Of Electrical Insulating Materials, Tracking Testing Machine Manufacturer

Technical Description:

The mechanism of electrical impingement on the epoxy resin insulating material using a high voltage of 3.5 kV AC with a frequency of 50 Hz causes the surface of the epoxy resin insulating material to burn.

Model: DX8427

Standard:

IEC60587-2007

ASTMD2303.

Parameters:

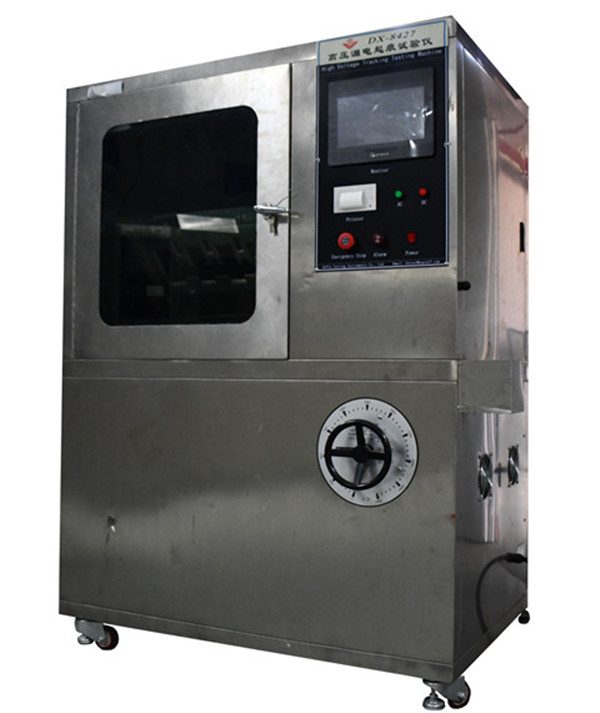

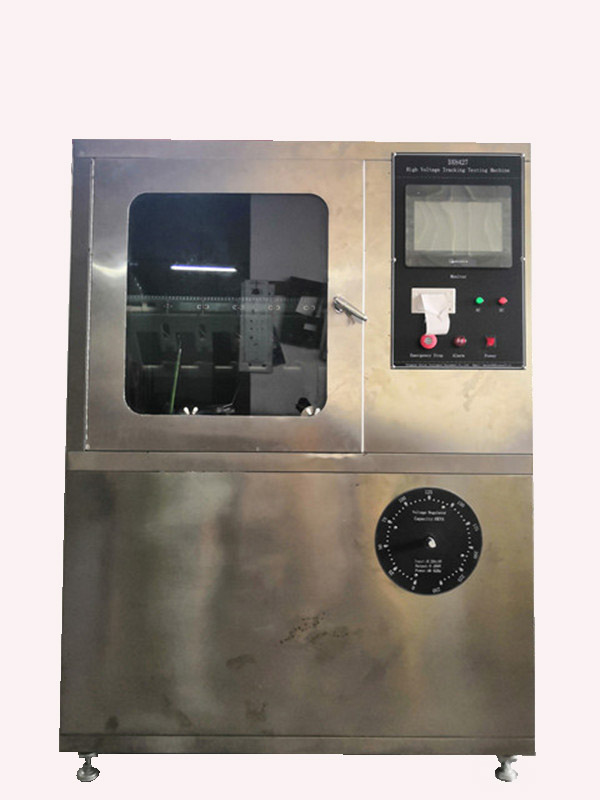

Name	DX8427 High Voltage Tracking Index Tester
Box	≥ 0.5 cubic meters
Drop size	44 to 50 drops / cm3
Power supply	AC 220V, 50Hz
Electrical load	100 ~ 6000V adjustable
Drip height	30mm ~ 40mm adjustable
Electrode Pressure	1.00N±0.05N
Flow range	0.00185 to 2 ml / min
Working speed	0.1 to 15 rev / min
