BS476-7 Fire Testing Equipment Building Material Flame Surface Spread Classification Tester

BS476-7 Building Material Flame Surface Radiation Heat Spread Classification Tester

BS476-7 Application:
Determine The Classification of The Surface Spread, The extension of the flame which on the exposed surface of the wall and ceiling. The test method is through the gradual change of the radiation heat, with small flame to ignite samples, and determination of the critical heat flux.

BS476-7 Standards:
BS476-7

BS476-7 Parameters:

BS476-7 Features:

The area of the radiant panel is 850mm×850mm, strengthen the structural support frame.

1. Sample holder is perpendicular to the radiant panel with standard scale mark, it can according to the distance of the flame propagation to calculate the critical heat flux.
2. Equipped with water cooling circulation system, which can be carried out to the specimen holder, and avoid high temperature cause damage for a long time.

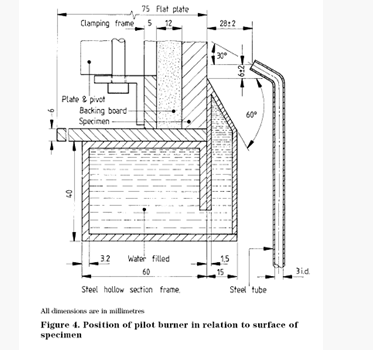

3. Equipped with small flame ignition device, use the electric to ignition.
4. The radiant panel equipped with flame test device, if the radiant panel flame out, it can cut off the gas automatically.
5. Equipped with electric control box, which can adjustable gas and air flow, and show the value of the heat flux.
6. Equipped with water cooling heat flux sensor.
7. PLC+ HIM, can display the information of the test.

EN 13501-1 Fire Classification of Building Products and Components - Relevant Reference Standards:

- EN 13823: Fire Test of Building Products, Single Combustion Project under Thermal Shock of Building Products (floor materials)
- EN ISO 1182 fire test of building products, non-combustible test
- EN ISO 1716: Fire test of building products, Determination of calorific value of combustion
- EN ISO 9239-1 Fire test of floor materials Part 1: Determination of combustion performance using radiant heat sources
- EN ISO 11925-2: Fire tests. Flammability of construction products subjected to flames. Part 2: Single ignition source test
