Automotive Wire Cross Linking Testing Equipment For Thin Walled Low Voltage Cables For Automobiles

Name: Automotive Wire Cross Linking Testing Equipment For Thin Walled Low Voltage Cables For Automobiles
Brand: Daxian
Price: 1 USD

Brand Name : Daxian

Model Number : DX8225

Certification : GB9328

Place of Origin : China

MOQ : One set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash

Supply Ability : 15 sets per month

Delivery Time : 15 work days

Packaging Details : Wooden Case

Standard : GB9328

Scope of application : for thin-walled low-voltage cables below DC 60V (AC 25V)

Function : has passed the cross-linking test of low-voltage cables for automobiles

Test environment requirements : 250±25°C

Blazing plate : Material: aluminum

Test stick : Ф6mm, length 300mm

Load : 5~7N

Contact Now

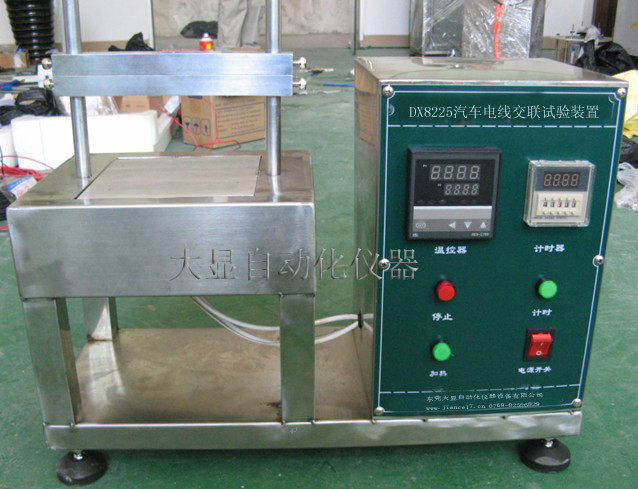

DX8225 Automotive wire cross-linking testing equipment

Product Overview:

This testing machine has passed the cross-linking test of low-voltage cables for automobiles; The equipment is composed of a control box, an ironing plate, a thermostat and a timer.

Conform to the standard: meet the requirements of GB9328 test standard.

Scope of application:

It is suitable for thin-walled low-voltage cables below DC 60V (AC 25V) for automobiles

The main technical parameters of the instrument:

1. Test stick: Ф6mm, length 300mm

2. Specifications of red-hot plate: 150mm× 150mm× 150mm Material: aluminum plate

3. Blazing plate: Material: aluminum

4. Load: 5~7N

5. Chronograph: 1 piece

6. Test environment requirements: 250±25°C
