DX8493 Xenon Arc Lamp Aging Test Chamber For Plastics, Rubber, Paints, Coatings, Inks, Paper

DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DX8493 Xenon Arc Lamp Aging Test Chamber For Plastics, Rubber, Paints, Coatings, Inks, Paper

Brand Name : Daxian

Model Number : DX8493

Certification : GB/T16422.2

Place of Origin : China

MOQ : One set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash

Supply Ability : 15 sets per month

Delivery Time : 15 work days

Packaging Details : Wooden Case

Standard : GB/T16422.2,GB9344,GB/T1865-97, ASTM G 155-04a

Scope of application : Suitable for plastics, rubber, paints, coatings, inks, paper, medicines

Temperature range : RT+10°C~80°C

Humidity Range : 50%±5%

Lab Space : 1650mm x 1640mm x 2420mm (L*D*H)

Ambient temperature : ±5°C~+30°C ≤85%R· H

Power supply voltage : AC380V±10% 50±0.5HZ three-phase five-wire system

Contact Now

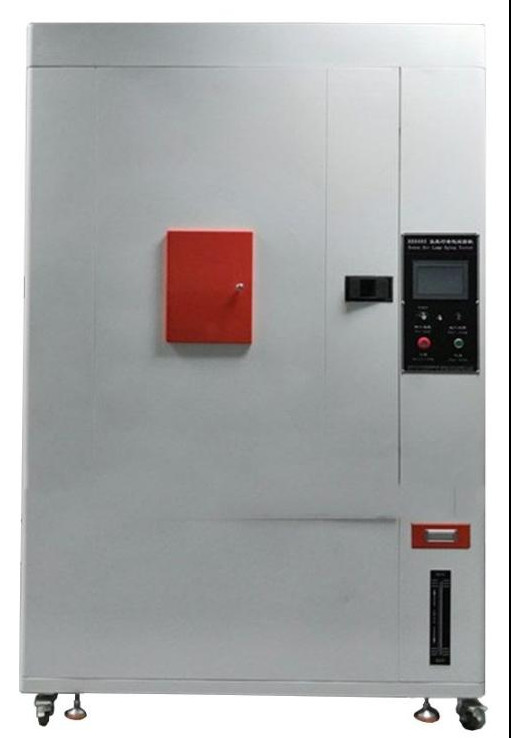

DX8493 Xenon arc lamp aging test chamber

DX8493 Xenon Arc Lamp Aging Test Chamber For Plastics, Rubber, Paints, Coatings, Inks, Paper

1. Application industry:

Suitable for plastics, rubber, paints, coatings, inks, paper, medicines, food, cosmetics, textiles, auto parts, packaging materials, building materials, electrical products, etc.; It provides corresponding environmental simulation and accelerated tests for scientific research, product development and quality control, and provides an important test basis.

2. Compliance standards

This product conforms to GB/T16422.2, GB9344, GB/T1865-97, ASTM G 155-04a and other national standards.

3. Performance indicators:

Temperature range: RT+10°C~80°C

Humidity Range: 50%±5%

Rainfall time: 1~9999 minutes, adjustable

Rainfall period: 1-240 minutes, adjustable interval (break).

Spectral wavelength: 300nm~400nm

Xenon lamp power: 8.5kw (lifespan: 2600 hours, water cooling)

DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD.

Technical consultation telephone: 15322988080Engineer Su E-mail: daxian02@jiance17.cn

Marketing Department Tel: 13266221899 TEL: 0769-33220970 FAX: 0769-33220970

Head office address: Changlian Industrial Building, Chang'an Xiabian, Dongguan City, Guangdong Province

Control Operating System: A PC can be used to control/operate the chamber system via IP connection

Lamp: 300mm long, 2 in total

Time Controller: Touch screen precision timing control

Accuracy range: set accuracy: temperature±0.1°C, humidity±0.5%R· H; Indication accuracy: temperature±0.1°C, humidity±0.5%R· H

Temperature and humidity sensor: platinum resistance Pt100Ω/mv

Humidification system: external isolated all-stainless steel shallow surface evaporative humidifier

Blackboard temperature: Bimetal blackboard thermometer 55°C~75°C

Water supply system: The humidified water supply is automatically controlled, and the xenon lamp cools the circulating water

Temperature controller: imported microcomputer temperature and humidity integrated controller

Humidity: 30%~65%RH when irradiated, up to 90%RH when dark

Radiation intensity: 0-60W/m²

Circulating system: temperature-resistant and low-noise air-conditioning motor, multi-leaf centrifugal wind wheel

Outer box material: high-grade sprayed color steel plate/SUS304 stainless steel matte line hairline treatment

Inner box material: SUS304 high-quality stainless steel light plate

Sample holder material: SUS304 high-quality stainless steel strip

Door frame insulation: high and low temperature aging resistant silicone rubber door seal

Standard configuration: 1 set of radiation-proof glass windows, 1 dynamic sample rack, 2 xenon lamps

Safety protection: leakage, short circuit, overtemperature, water shortage, motor overheating, overcurrent protection/controller power failure memory

Power supply voltage: AC380V±10% 50±0.5HZ three-phase five-wire system

Ambient temperature: ±5°C~+30°C ≤85%R· H

Water cooling system: 1 set, cooling system: 1 set

Xenon lamp power supply: 1 set

Number of test pieces: 5 pieces in a set

The thickness of the clamp is up to 120mm, and the thickness of the five clamps can be adjusted independently

Lab Space 1650mm x 1640mm x 2420mm (L*D*H)
