Low Temperature Wire Winding Testing Machine,assessing and measuring the performance of circular cables

Name: Low Temperature Wire Winding Testing Machineassessing and measuring the performance of circular cables
Brand: Daxian
Price: 1 USD

Brand Name : Daxian

Model Number : DX8323

Certification : GB2951.4

Place of Origin : China

MOQ : One set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash

Supply Ability : 15 sets per month

Delivery Time : 15 work days

Packaging Details : Wooden Case

Standard : GB2951.4, GB2099-94, VDE0472, and IEC884-1

Scope of application : for assessing and measuring the performance of circular cables or circular insulated wire cores

Low temperature winding sample diameter : Ф2.5~Ф12.5mm

Winding rod diameter : Ф4.0~Ф37.5mm, total of 12 pieces

Thread sleeve : Ф3.5、Ф6、Ф10、Ф12、Ф16mm ,two pieces each

Number of sample twists and turns : 2-10 turns

Contact Now

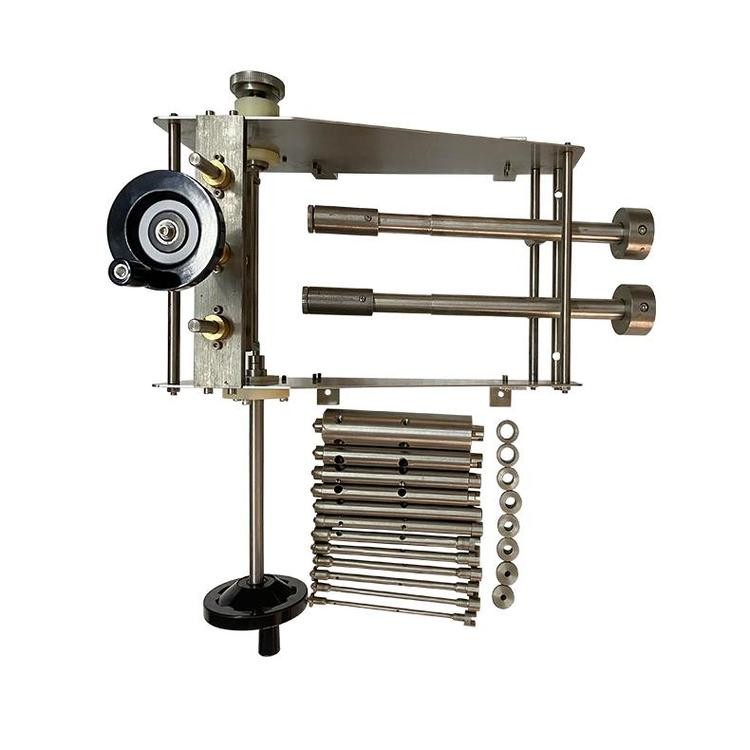

DX8323 Low Temperature Wire Winding Device

Low Temperature Wire Winding Testing Machine,assessing and measuring the performance of circular cables

Scope of application: Suitable for assessing and measuring the performance of circular cables or circular insulated wire cores at low temperatures.

Compliant with standards: Complies with test standards such as GB2951.4, GB2099-94, VDE0472, and IEC884-1, and works even better when used in conjunction with a low-temperature box.

Main parameters:

1. Low temperature winding sample diameter:Ф2.5~Ф12.5mm

2. Winding rod diameter:Ф4.0~Ф37.5mm, total of 12 pieces

3. Thread sleeve:Ф3.5,Ф6,Ф10,Ф12,Ф16mm ,two pieces each

4. Number of sample twists and turns: 2-10 turns

5. All devices in this series are made of stainless steel

China Low Temperature Wire Winding Testing Machine,assessing and measuring the performance of circular cables wholesale

Low Temperature Wire Winding Testing Machine,assessing and measuring the performance of circular cables Images
