IEC60587 ASTMD2303 Electrical Tracking Mechanism
Technical Description:
The mechanism of electrical impingement on the epoxy resin insulating material using a high voltage of 3.5 kV AC with a frequency of 50 Hz causes the surface of the epoxy resin insulating material to burn.
Model: DX8427
Standard:
IEC60587-2007, ASTMD2303.
Parameters:

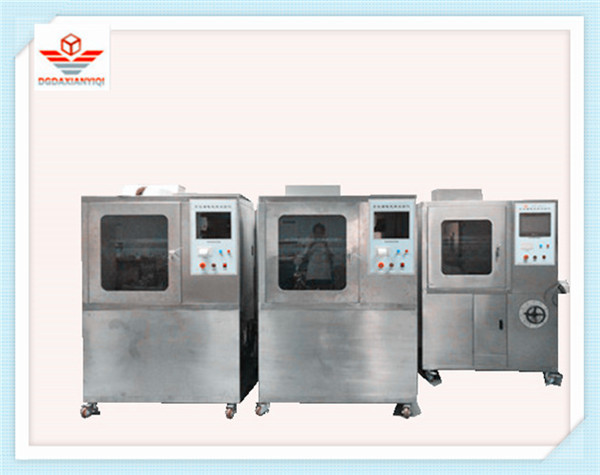

| Name | DX8427 High Voltage Tracking Index Tester |
| Box | ≥ 0.5 cubic meters |
| Drop size | 44 to 50 drops / cm3 |
| Power supply | AC 220V, 50Hz |
| Electrical load | 100 ~ 6000V adjustable |
| Drip height | 30mm ~ 40mm adjustable |
| Electrode Pressure | 1.00N±0.05N |
| Flow range | 0.00185 to 2 ml / min |
| Working speed | 0.1 to 15 rev / min |
1. DC voltage: display the voltage of DC test, which can be realized by adjusting voltage regulator.
2. AC voltage: display the voltage of AC test, which can be realized by adjusting voltage regulator.
3. DC current (1 ~ 5): there are five groups of DC current display, display the current value of five groups of DC test, the set value is 60mA.
4. AC current (1 ~ 5): there are five groups of AC current display, display the current value of five groups of AC test, the set value is 60mA.
5. Reset: 1. When the tester alarms, press this button to stop the alarm; 2. Press this button to stop the test, and all the current values in the main test screen are cleared
6. Power supply: it can control the on-off of power supply and has the function of leakage protection.
7. Resistance gear: select the gear of series resistance value.
Testing equipment for flame retardancy of materials:
Glow wire tester, needle flame tester, horizontal and vertical combustion tester, leakage trace tester, high current ignition tester,
Single wire and cable vertical combustion tester, bundle wire and cable combustion testing machine, automotive interior material flame retardant performance tester, hot wire igniting tester, high voltage leakage mark tester, toy combustion tester, foam level combustion tester, UL1598 vertical combustion test, UL1581 wire and cable combustion tester.
