IEC60587 Standard Track And Erosion Tester 7KVA Power supply

Name: IEC60587 Standard Track And Erosion Tester 7KVA Power supply
Brand: Daxian
Price: 1 USD

China IEC60587 Standard Track And Erosion Tester 7KVA Power supply wholesale

Brand Name : Daxian

Model Number : DX8427

Certification : IEC60587、ASTMD2303

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, In cash

Supply Ability : 15 sets per month

Delivery Time : 5-8 work days

Packaging Details : Wooden case

Product naTrack and erosion test machineme : Track and erosion test machine

Standard : IEC60587、ASTMD2303

Power supply : 7KVA

Test : 5 samples

Studio volume : 900L*650W*950H(mm)

Contact Now

Insulator Resistance To Electrical Tracking And Erosion Testing Machine IEC60587

Meet the standards:

IEC60587: 1984
"Test Methods for Evaluating the Resistance to Tracking and Corrosion of Electrical Insulating Materials Used in Severe Environmental Conditions".

Product overview:

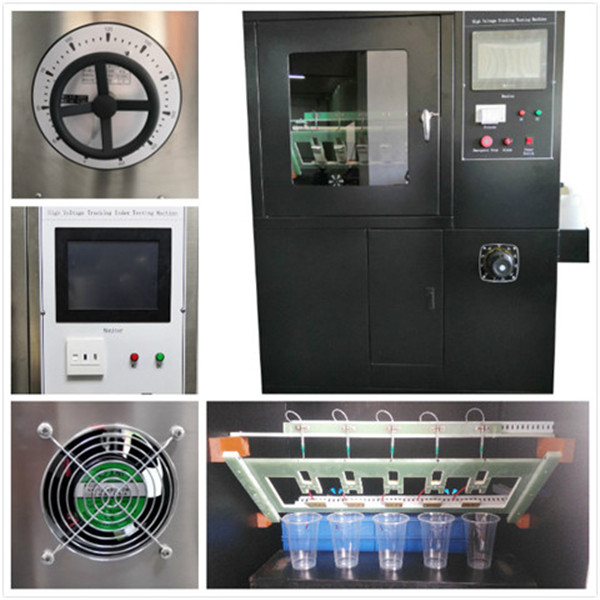

The high-voltage tracking tester is suitable for testing the resistance to tracking and corrosion of solid insulating materials such as insulators and silicone rubber. It simulates the use of liquid contaminants and inclined surface samples under power frequency (48Hz-62Hz). The tracking and corrosion measurement assesses the resistance to tracking and corrosion of electrical insulating materials used under severe environmental conditions.

Technical parameters:

1. Test voltage drop: ≤5%
2. Time setting: can be set freely
3. Electrode spacing: (50±0.5) mm
4. Electrode material: 304 corrosion-resistant stainless steel
5. Electrode fixing bracket: composite material with separate upper and lower electrodes, high insulation and high strength
6. A group of 5 samples can be tested at the same time
7. Drop size: can be set freely according to needs
8. Short-circuit requirements: short-circuit current ≥60mA for 2S
9. Filter paper size: made in accordance with the standard size requirements, the thickness of the filter paper is 0.15 -0.17mm; this equipment is equipped with filter paper 304 stainless steel template to avoid the influence of uneven liquid flow rate caused by inaccurate filter paper cutting on the test
10. Volume in the box: ≥ 0.75 cubic meters, with a glass observation door (can be customized according to requirements)
11. The cabinet is made of 1.8mm Q235 steel plate by high temperature spraying, which greatly enhances the corrosion resistance and strength.
12. Control device: It adopts high-end PLC+Taiwan Weilun touch screen control, precise control, simple operation, completely humanized design, automatic report generation at the end of the test, and the panel thermal printer can print test results in a timely manner;
13. Chassis: Electrostatic spraying on the surface of iron plate (SUS304 stainless steel wire drawing surface is optional);
14. The dirty liquid tank is made of 316 stainless steel and is equipped with a closed device.
15. External dimensions of the instrument: 1300L*700W*1800H(mm)

Power supply	220V /50Hz
Power supply	7KVA
Test voltage	AC 100V-8000V AC, DC 100V-8400V DV
Working room volume	900L650W950H(mm); volume is 0.56m3
