DX 8298 Flammability Testing Machine BS476-6 Standard For Building Materials

Name: DX 8298 Flammability Testing Machine BS4766 Standard For Building Materials
Brand: Daxian
Price: 1 USD

China DX 8298 Flammability Testing Machine BS476-6 Standard For Building Materials wholesale

Brand Name : Daxian

Model Number : DX 8298

Certification : BS 476-6

Place of Origin : China

MOQ : one set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Money Gram, In cash

Supply Ability : 15 sets per month

Delivery Time : 15 work days

Packaging Details : Wooden Case

Product name : BS476-6 Fire propagation Tests on Building materials and structures

Standard : BS 476-6

Test chamber inner dimension : 190 mm × 190 mm × 90 mm

Air inlet : 96 mm × 25 mm

Asbestos cement board : 12.5 mm thick

Warranty : 12 months

Contact Now

BS476-6 Fire Propagation Tests On Building Materials And Structures Flammability Test Machine

BS476-6 Fire propagation Tests on Building materials and structures

Model: DX8298

Meet the standards:

BS 476 Part 6 .

Scope of application:

The test device is suitable for testing the fire spread index of wall and ceiling lining and other flat materials, composite materials or components, so as to evaluate the performance of inner wall and ceiling lining.

1. Export to Malaysia, Switzerland

2. Test gas G112 (17% methane, 59% hydrogen, 24% nitrogen)

3. Heating element: two 1000W quartz heating tubes

Technical parameters:

Chamber wall:

Asbestos cement board	12.5 mm thick
Dry density	1300 kg / m3 ~ 1450 kg / m3
test chamber inner dimension	190 mm × 190 mm × 90 mm
Air inlet	96 mm × 25 mm
Mica observation window	50 mm × 50 mm
Steel baffle	200 mm × 40 mm
Steel bar	fixed sample holder

DX 8298 Flammability Testing Machine BS476-6 Standard For Building Materials

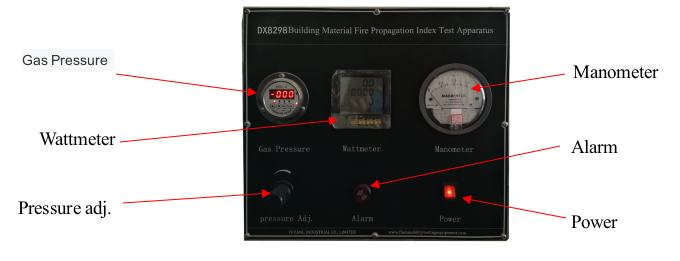

Panel description :

(1) Gas Pressure : display the input gas pressure, unit: MPa;

(2) Wattmeter: display and measure the input voltage, current and power of the heating tube;

(3) Pressure adj.: adjust the input gas pressure, and display the pressure value through (1);

(4) Manometer: display the output gas pressure value, unit: KPa ;

(5) Alarm: when the equipment fails or the test ends, it will sound an alarm as a reminder;

(6) Power: control the general power supply of the equipment, in the open state, the indicator light is on, and the off indicator light is off.
