Five Groups Of High Voltage Leakage Trace Tester
Basic introduction:
Five sets of high voltage leakage tracking tester are used to realize the leakage tracking and electric erosion resistance test of composite insulator umbrella sleeve material. It is mainly applicable to the simulation test items of rubber, plastic and other electrical insulating materials, such as the inclined plane method AC / DC leakage tracking test.
Executive standard:
- IEC 60587-2007
Technical parameter:
| Overall dimension | 1200L × 750W × 1800h (mm) |
| Test time | 6 hours |
| Test voltage | 100v-6000v stepless adjustable |
| Test transformer | capacity 5KVA |
| experimental groups | five groups |
| Sample size | plate slope 50 × 120mm |
Performance characteristics of five groups of high voltage leakage tracking tester:

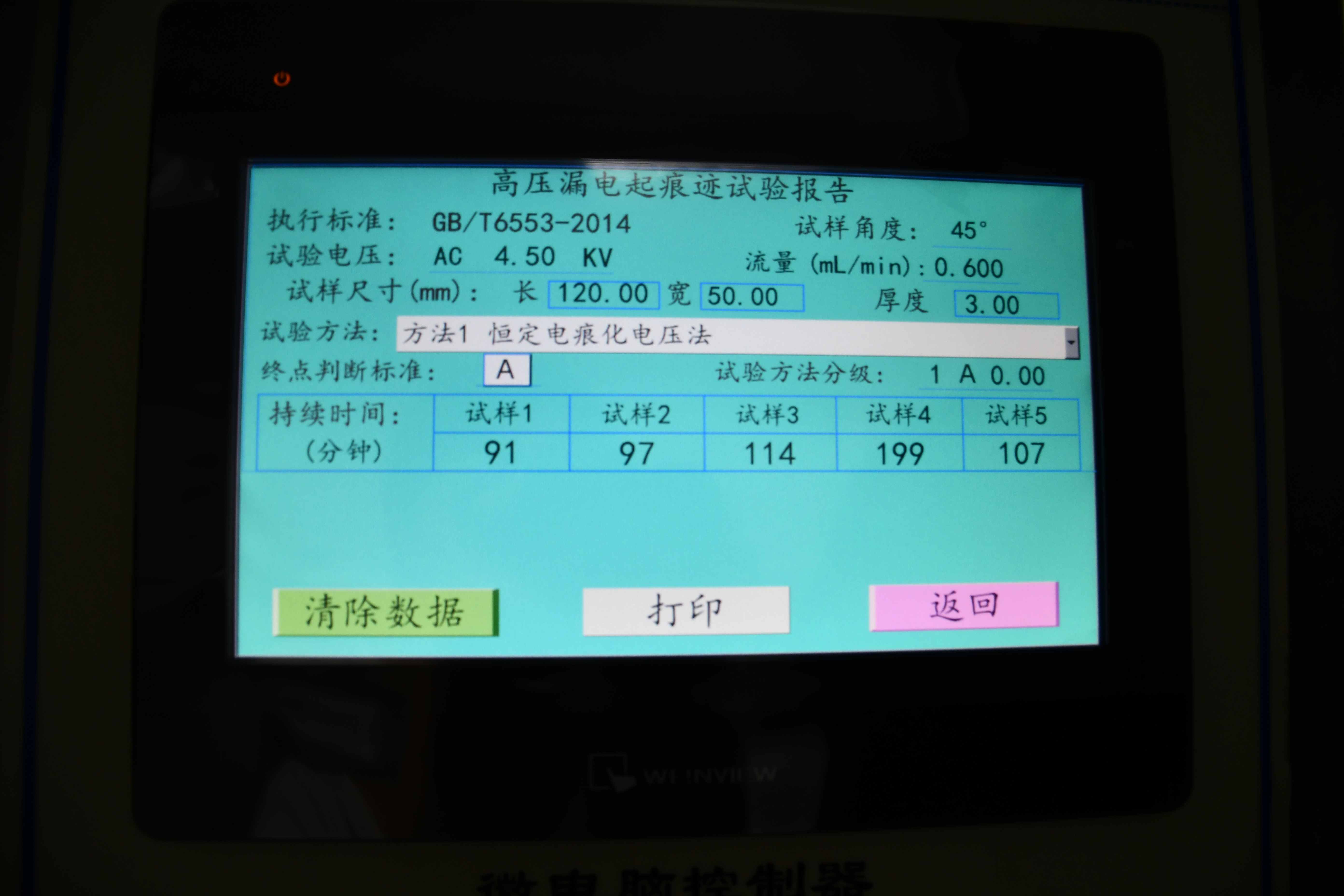

Control interface: touch screen
Power type: AC / DC
Power switching: AC and DC can be manually switched
AC and DC ammeters: 5 each
AC and DC voltmeter: 1 each
Contaminant controller: precision peristaltic pump
Number of pump heads: 5

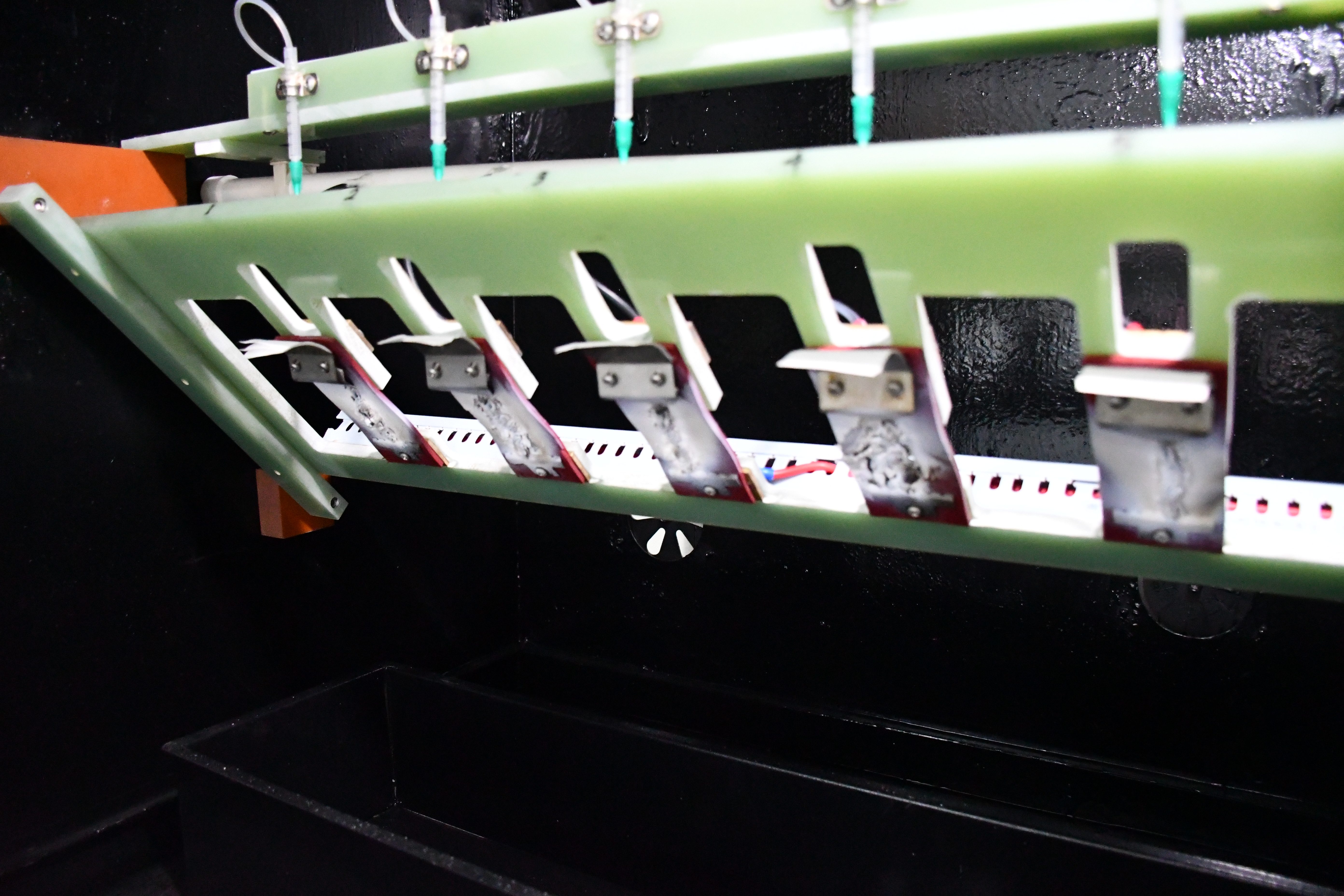

Number of stainless steel electrodes: 5 sets (upper and lower electrodes)
Accessories: reservoir, knife mold
Software has or can expand workstation system: unified with existing system, and compatible with existing system
With or extensible data management platform: can be tested equipment, use procedures, standards, testers, location and other vertical historical data, horizontal data for statistical analysis and evaluation, automatic report generation, data (Excel / DAT / TXT format) output and input.
Operating instructions of 6kV anti electric trace tester:
1. The control panel is located on the right side of the test chamber.
2. The working area is equipped with a door with a glass window to observe the test process at any time during the test.
3. The exhaust fan is installed at the top. After the test, the exhaust system is turned on to discharge the waste gas out of the room.
4. The system has the advantages of simple operation, precise control, completely humanized design, automatic report generation at the end of 5. The test, and panel thermal printer can timely print the test results;
6. Size of filter paper: it is made according to the size requirements, and the thickness of filter paper is 0.15-0.17mm.
