CNS 15118-2 Construction Material Flammability Test Chamber

Name: CNS 151182 Construction Material Flammability Test Chamber
Brand: Daxian
Price: 1 USD

China CNS 15118-2 Construction Material Flammability Test Chamber wholesale

Brand Name : Daxian

Model Number : DX8342A

Certification : CNS 15118-2，ISO 11925-2：2010

Place of Origin : China

MOQ : one set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash

Supply Ability : 15 sets per month

Delivery Time : 15work days

Packaging Details : Wooden Case

Standard : CNS 15118-2，ISO 11925-2：2010

Dimension : 680mm × 380mm × 770mm

Sample fixture : 3 pieces

Air velocity : 0.7 ± 0.1 M / s

Wanrranty : 12 months

Supply power : 220V

Contact Now

CNS 15118-2 Photovoltaic(PV) Module Safety Qualification Testing Equipment ISO 11925-2:2010

Application:

The fire machine meets the requirements of ignition test standard of solar photovoltaic module in CNS 15118-2:2018 and ISO 11925-2:2010. It is mainly used to evaluate the flame resistance of solar photovoltaic module materials.

Standard:

- ISO 11925-2:2010

- CNS 15118-2:Photovoltaic(PV) module safety qualification- Part2: Requirements for testing

Technical parameters:

Overall dimension	680mm × 380mm × 770mm
Sample fixture	3 pieces,4.5 of ISO 11925-2:2010
Gas burner	4.3 of ISO 11925-2:2010
Air velocity	0.7 ± 0.1 M / s

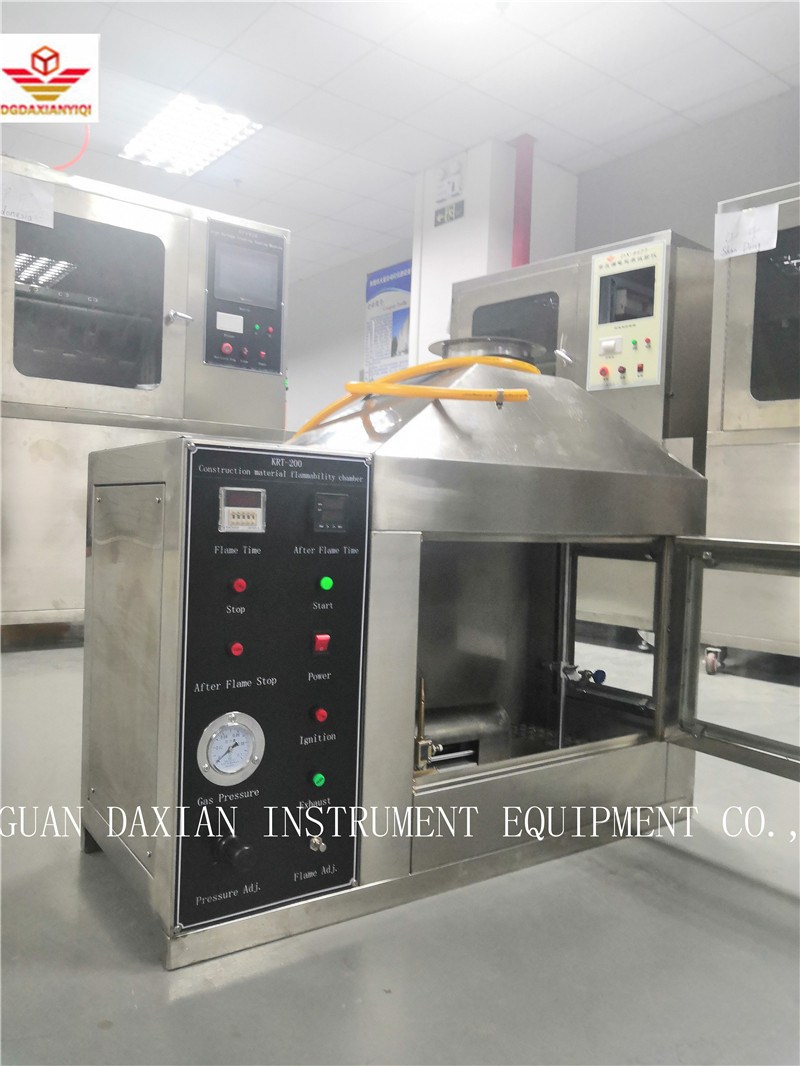

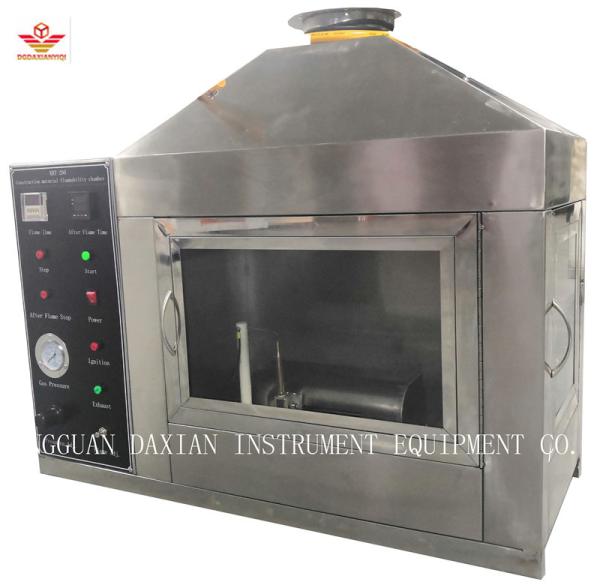

1. Test chamber material: made of stainless steel, the front and side of the test chamber are installed with heat insulation glass doors;

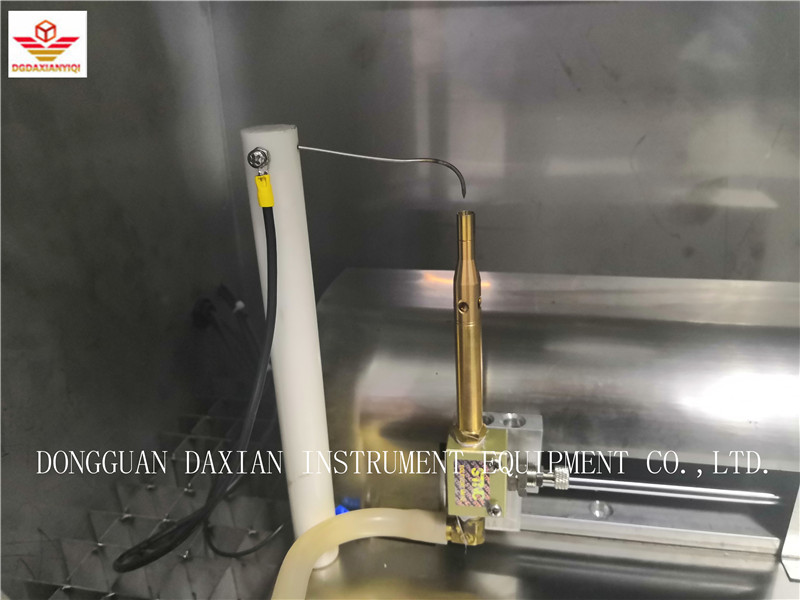

2. Gas burner: with adjusting valve to adjust and control the flame height. The burner can move, move towards and away from the sample, and can be used vertically and tilted to 45 ° with the vertical axis;

3. There is a 50 mm high metal grid structure at the bottom of the test chamber, the grid size is 25 mm × 25 mm, the metal thickness is 1.5 mm, and there must be a 455 mm × 210 mm horizontal plate at the metal grid;

4. The air velocity in the vertical direction 5 cm away from the sample surface shall not exceed 0.2 M / s, and the air velocity in the horizontal direction shall not exceed 0.1 M / s;

Photovoltaic(PV) Module Safety Qualification Testing machine Main configuration:

- Mirror: 1 side to observe the back of the sample;
- Pallet: 1;
- Flame spacer: 5mm, 16mm, 1 each;
- Timing device: 1 set;
- Bunsen lamp: diameter of 10 mm and 25 mm in each group (tolerance ± 10%);
- One flame height measuring ruler with measuring range of 20 ~ 50mm.
