SUS304 Cable Testing Equipment For Vertical Flame Propagation

Name: SUS304 Cable Testing Equipment For Vertical Flame Propagation
Brand: DAXIAN
Price: 1 USD

China SUS304 Cable Testing Equipment For Vertical Flame Propagation wholesale

Brand Name : DAXIAN

Model Number : DX8349

Certification : IEC60332-3-10-2000

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash

Supply Ability : 30 sets per month

Delivery Time : 20 days after order confirmed

Packaging Details : Standard export wooden case

Application : Flame Propagation of Bundles of Wires and Cables

Standards : IEC60332-3-10-2000

Materials : SUS304 stainless steel

Dimensions : 1000mmX2000mm x 4000mm

Anemometer : 0.05-5m/s

Flow regulation : 3-30L/min

Contact Now

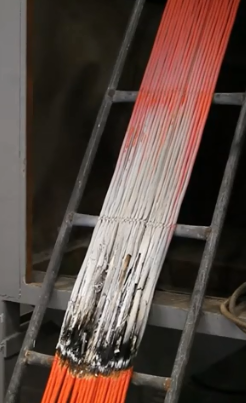

IEC60332-3 Test apparatus for Vertical Flame Propagation of Bundles of Wires and Cables

Product description:

Wire and cable bunching combustion test room is suitable for wire and cable fire protection under different standards.

Standards:

IEC60332-3-10,21,22,23,24:2000.

The test device consists of the following main components:

1. Combustion chamber: 1 set (material: 304 stainless steel with thickness of 1.5mm is used inside and outside)
2. Steel ladder and bracket: one set (800 × 3500mm steel ladder)
3. Belt lamp and Venturi mixer: 1 set (size: effective width 250mm)
4. Car for installing blowtorch: 1 set
5. Console: 1 set of electrical control, flow control, timing control and temperature display
6. Air compressor: 1 set (self provided)
7. Dust collector: 1 set
8. Anemometer: 1
9. Propane gas, cylinder and pressure reducing valve: 1 set (provided by the user)

Technical parameters:

Internal dimensions of the combustion chamber	1000mmX2000mm x 4000mm(wdh)
Steel ladder size	500mm × 3500mm(w*h), wide type 800 × 3500mm
With a type torch	in line with GB/T18380.31-2008
Venturi mixer	in line with GBT18380.31-2008
the air flow adjustment in the combustion chamber	4500-500L/min
Propane flow regulation	3-30L/min
Compressed air flow regulation	10-100L/min
Anemometer	0.05-5m/s
Digital thermometer	0～400℃
With the type of torch positioning	high 600 ± 5mm,any adjustable horizontal distance
