IEC61730 Large Scale Photovoltaic Module Cell Flammability Tester

Name: IEC61730 Large Scale Photovoltaic Module Cell Flammability Tester
Brand: Daxian
Price: 1 USD

China IEC61730 Large Scale Photovoltaic Module Cell Flammability Tester wholesale

Brand Name : Daxian

Model Number : DX8342

Certification : IEC61730

Place of Origin : China

MOQ : one set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash

Supply Ability : 15 sets per month

Delivery Time : 15work days

Packaging Details : Wooden Case

Standard : IEC61730

Inside size : 700 x 400 x 810mm

Open area : 25x25mm, height: 50mm

Burner : 45° angle, flame height: 20mm

Timer : 0-99.99s/MH can be set

Supply power : 220V

Contact Now

IEC61730 Large-Scale Photovoltaic ModuleCell Flammability Tester

Application:

It is mainly applicable to test methods to determine whether building materials have flammability under specified conditions.

Standard:

- IEC61730

Technical parameters:

Serial number	Parts	Parameters
1	Intake fan and intake guide device	Introduce outdoor air, adjustable fins to avoid air turbulence. The inlet fan can be controlled remotely.
2	Anemometer	At least 3 anemometers, the wind speed reaches 5.3 ± 0.2 m/s; The accuracy of the anemometer is 0.2m/s;
3	Air flue	Air duct material, stainless steel. The height of the air duct from the ground: 1111 ± 100 mm; The internal dimensions of the air duct: 2133.6 ± 100 mm * 762mm; The length of the air duct: the temperature at three points reaches 5.3 ± 0.2 m/s.
4	Burner	Burner size: refer to UL790; Burner length: 1,120mm ± 0.1 mm; Burner inner diameter and outer diameter: inner diameter is 50.9 mm ± 0.1 mm, outer diameter is 60.3 ± 0.1 mm; Nozzle size: (12.7 ± 0.1) mm X (910.0 ± 1.5) mm (width X length); Ports on both sides: inner diameter (25 ± 0.13 mm) and outer diameter 33.4 ± 0.13 mm); With automatic ignition function and equipped with ignition gun;
5	Temperature thermocouple	Type: Type K There should be a fixture so that the thermocouple can test the flame temperature. At least reach the test range above 800° Response time: <1S
6	Test holder	The test frame can fix the sample, and the test frame needs to be made of refractory material. The angle of the test frame can be adjusted within a range of 30° from the horizontal. The angle of the test frame can be adjusted by gears. The test stand is equipped with an angle indicator, the angle accuracy of the indicator is 0.01°. The place of 22.62° shall be marked. The angle indicator has a temperature resistance of at least 800℃ and is a non-flammable material. The size of the test stand must reach 1.5m*2.3m, and thin-film modules and crystalline silicon modules must be installed. The test rack needs to be equipped with a loading table and an operating table. The test stand should be equipped with stainless steel trays to collect waste after the test. The test rack should be equipped with a bracket for installing the components, and the bracket is detachable.
7	Anti-backboard	Install between the test frame and the air duct, and place the flame recoil.
8	Air duct thermocouple	Monitor the air temperature in the air duct

Instructions for IEC61730 Large Photovoltaic Cell Flammability Tester:
Including exhaust,gas treatment system, gas supply system and wood burning system.

IEC61730 Large Scale Photovoltaic Module Cell Flammability Tester

Product Tags:

IEC 61730 Fire Testing Equipment

Module Cell Fire Testing machine

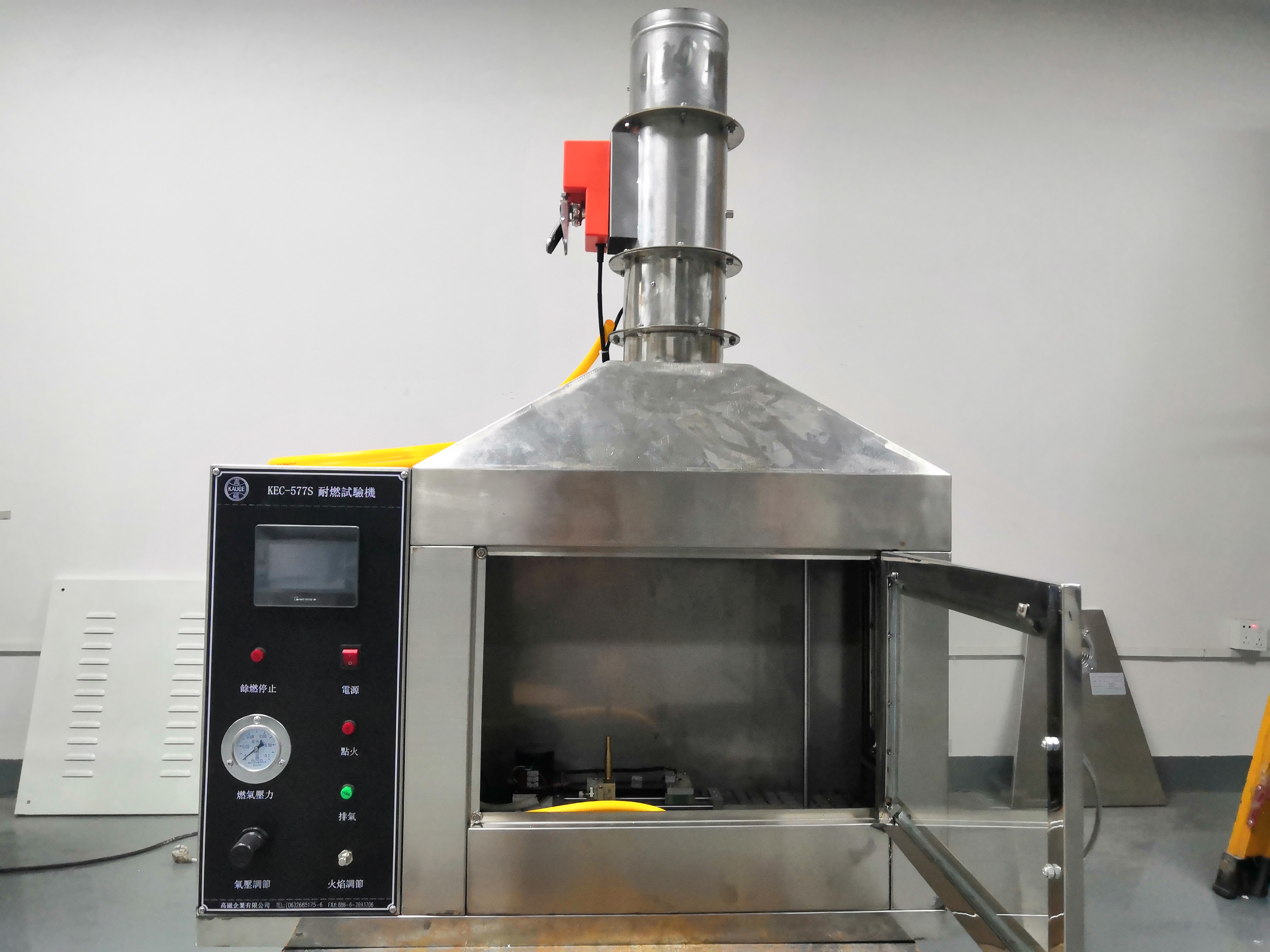

IEC61730 Large Scale Photovoltaic Module Cell Flammability Tester Images
