ISO 7165 Fire Testing Equipment / Impact Testing Machine Spot Goods

Name: ISO 7165 Fire Testing Equipment Impact Testing Machine Spot Goods
Brand: Daxian
Price: 1 USD

China ISO 7165 Fire Testing Equipment / Impact Testing Machine Spot Goods wholesale

Brand Name : Daxian

Model Number : DX1014

Certification : OSHA 29 CFR 1910.106 , NFPA CODE30

Place of Origin : China

MOQ : one set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash

Supply Ability : 15 sets per month

Delivery Time : 15work days

Packaging Details : Wooden Case

Warranty : 1 Year

Product name : Portable Fire Extinguisher Impact Test Machine

Standard : OSHA 29 CFR 1910.106 , NFPA CODE30

Application : Test Fire Extinguisher

Impact Height : 0-15mm (Adjustable)

Intake Pressure : 0.1 ~ 0.2MPa

Station : 1

Spot goods : 2

Contact Now

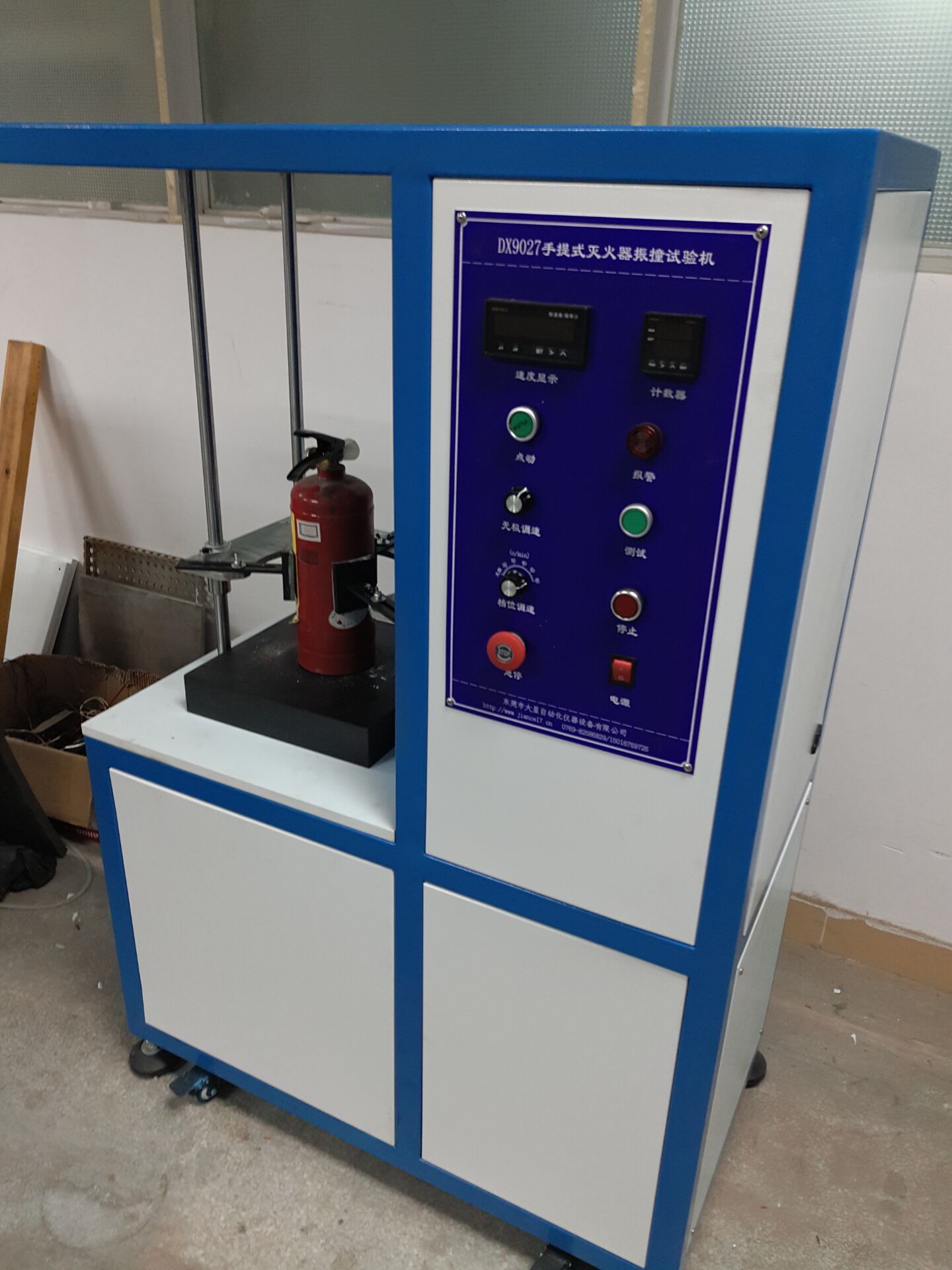

Portable Fire Extinguisher Impact Test Machine

Model: DX9027
Meet the standards:
ISO 7165,GB/T 4351.1-2005

Scope of application:
Mainly suitable for vibration test of portable fire extinguisher with 1kg~8kg.

Test method:
After dry powder fire extinguishers weighing, placed in 20 ºC ± 5 ºC constant greenhouse environment keep out after 18 h or more time, will be a fire extinguisher in upright position and fixed on the instrument, the height of 15 mm at a 1 hz frequency to the horizontal plate in free fall.

Technical parameters:

Impact frequency	1Hz (1 time/second)
Impact height	0-15mm (adjustable)
Number of hits	0-1000 adjustable;Stop automatically after reaching the set number.
Impact floor	thick 60mm ±1mm, long 300mm±5mm, wide 300mm ±5mm
Maximum load	20kg
Intake pressure	0.1 ~ 0.2mpa
Station	1
Power supply	220V, 50HZ, 0.5kw
Machine size	750 x 500 x 1300mm
